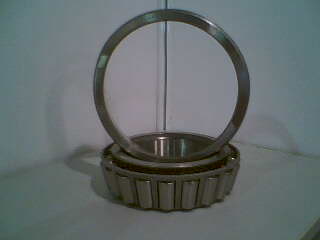

32200 Series


Product Description

Bearing No. GOST Boundary dimensions Basic load rating(kN) Limiting speed Mass
mm Dynamic Static rpm Kg
d D T B C Rmin rmin Cr Cor Grease Oil ≈
32204 7504 20 47 19.25 18 15 1 1 36.5 39.5 8000 11000 0.161
32205 7505 25 52 19.25 18 16 1 1 42 47 7500 10000 0.184
32206 7506 30 62 21.25 20 17 1 1 51.8 63.9 6300 8500 0.29
32207 7507 35 72 24.25 23 19 1.5 1.5 70.6 89.7 5300 7000 0.45
32208 7508 40 80 24.75 23 19 1.5 1.5 77 97 4800 6300 0.535
32209 7509 45 85 24.75 23 19 1.5 1.5 80 105 4500 6000 0.584
32210 7510 50 90 24.75 23 19 1.5 1.5 76 97 4300 5600 0.646
32211 7511 55 100 26.76 25 21 2 1.5 108 144 3800 5000 0.86
32212 7512 60 110 29.75 28 24 2 1.5 132 181 3400 4500 1.16
32213 7513 65 120 32.75 31 27 2 1.5 160 224 3000 4000 1.54
32214 7514 70 125 33.25 31 27 2 1.5 168 238 2800 3800 1.63
32215 7515 75 130 33.25 31 27 2 1.5 169 244 2600 3600 1.75
32216 7516 80 140 35.25 33 28 2.5 2 197 280 2400 3400 2.13
32217 7517 85 150 38.5 36 30 2.5 2 226 325 2200 3200 2.69
32218 7518 90 160 42.5 40 34 2.5 2 269 396 2000 3000 3.43
32219 7519 95 170 45.5 43 37 3 2.5 301 450 1900 2800
