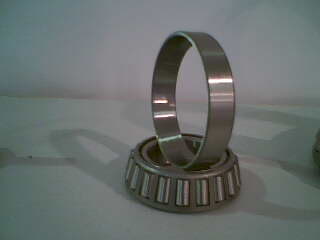

32300 Series


Product Description

Bearing No. GOST Boundary dimensions Basic load rating(kN) Limiting speed Mass
mm Dynamic Static rpm Kg
d D T B C Rmin rmin Cr Cor Grease Oil ≈
32303 　 17 47 20.25 19 16 1 1 35.4 36.6 8000 11000 0.174
32304 7604 20 52 22.25 21 18 1.5 1.5 42.7 46.4 7500 10000 0.231
32305 7605 25 62 25.25 24 20 1.5 1.5 61.7 68.9 6000 8000 0.367
32306 7606 30 72 28.75 27 23 1.5 1.5 81.7 97.6 5300 7000 0.56
32307 7607 35 80 32.75 31 25 2 1.5 99.1 119 4800 6300 0.77
32308 7608 40 90 35.25 33 27 2 1.5 115 149 4000 5300 1.05
32309 7609 45 100 38.25 36 30 2 1.5 145 191 3600 4800 1.4
32310 7610 50 110 42.25 40 33 2.5 2 177 239 3200 4300 1.89
32311 7611 55 120 45.5 43 35 2.5 2 203 274 3000 4000 2.37
32312 7612 60 130 48.5 46 37 3 2.5 226 306 2600 3600 2.9
32313 7613 65 140 51 48 39 3 2.5 259 353 2400 3400 3.51
32314 7614 70 150 54 51 42 3 2.5 298 413 2000 3000 4.35
32315 7615 75 160 58 55 45 3 2.5 346 488 2000 3000 5.34
32316 7616 80 170 61.5 58 48 3 2.5 387 549 1900 2800 6.38
32317 7617 85 180 63.5 60 49 4 3 421 599 1800 2600 7.3
32318 7618 90 190 67.5 64 53 4 3 477 690 1700 2400
