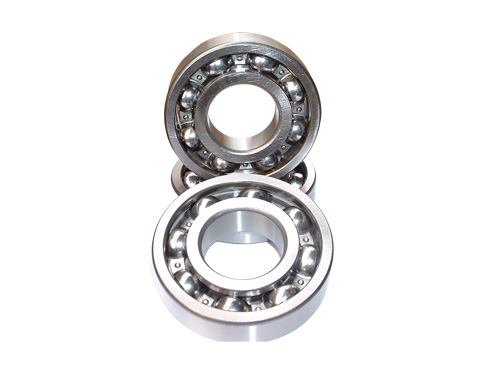

Deep Groove Ball Bearing 6200 Series


Product Description

Bearing No. Boundary dimensions Basic load ratings (kN) Limiting speed Mass
mm Dynamic Static rpm Kg
d D B rs min Cr Cor Grease Oil ≈
6200 10 30 9 0.6 5.1 2.38 25000 30000 0.032
6201 12 32 10 0.6 6.82 3.05 22000 26000 0.035
6202 15 35 11 0.6 7.65 3.72 19000 23000 0.045
6203 17 40 12 0.6 9.58 4.78 18000 21000 0.064
6204 20 47 14 1 12.8 6.65 16000 18000 0.103
6205 25 52 15 1 14 7.88 13000 15000 0.127
6206 30 62 16 1 19.5 11.5 11000 13000 0.2
6207 35 72 17 1.1 25.5 15.2 9800 11000 0.288
6208 40 80 18 1.1 29.5 18 8700 10000 0.368
6209 45 85 19 1.1 31.5 20.5 7800 9200 0.416
6210 50 90 20 1.1 35 23.2 7100 8300 0.463
6211 55 100 21 1.5 43.4 29.4 6400 7600 0.607
6212 60 110 22 1.5 52.4 36.2 6000 7000 0.783
6213 65 120 23 1.5 57.2 40.1 5500 6500 0.99
6214 70 125 24 1.5 62.2 44.1 5100 6000 1.07
6215 75 130 25 1.5 67.4 48.3 4800 5600 1.18
6216 80 140 26 2 72.7 53 4500 5300 1.4
6217 85 150 28 2 84 61.9 4200 5000 1.79
6218 90 160 30 2 96.1 71.5 4000 4700 2.15
6219 95 170 32 2.1 109 81.9 3700 4400 2.62
6220 100 180 34 2.1 122 93.1
