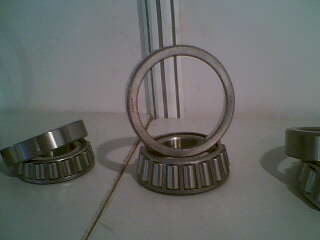

31300 Series


Product Description

Bearing No. Boundary dimensions Basic load rating(kN) Limiting speed Mass
mm Dynamic Static rpm Kg
d D T B C Rmin rmin Cr Cor Grease Oil ≈
31305 25 62 18.25 17 13 1.5 1.5 40.7 46 5600 7500 0.264
31306 30 72 20.75 19 14 1.5 1.5 47.3 50 5000 6700 0.393
31307 35 80 22.75 21 15 2 1.5 61.6 67 4500 6000 0.518
31308 40 90 25.25 23 17 2 1.5 81 96 4000 5300 0.727
31309 45 100 27.25 25 18 2 1.5 91 102 3400 4500 0.947
31310 50 110 29.25 27 19 2.5 2 106 120 3200 4300 1.22
31311 55 120 31.5 29 21 2.5 2 130 158 2800 3800 1.56
31312 60 130 33.5 31 22 3 2.5 145 176 2600 3600 1.91
31313 65 140 36 33 23 3 2.5 165 202 2200 3200 2.39
31314 70 150 38 35 25 3 2.5 218 274 2400 3400 2.95
31315 75 160 40 37 26 3 2.5 209 245 1900 2800 3.39
31316 80 170 42.5 39 27 3 2.5 224 265 1900 2800 4.05
31317 85 180 44.5 41 28 4 3 242 285 1800 2600 4.6
31318 90 190 46.5 43 30 4 3 264 315 1700 2400 5.9
31319 95 200 49.5 45 32 4 3 292 355 1700 2400 6.95
31320 100 215 56.5 51 35 4 3 374 465 1600 2200 8.6
31321 105 225 58 53 36 4 3 402 500 1500 2000 9.65
31322 110 240 63
